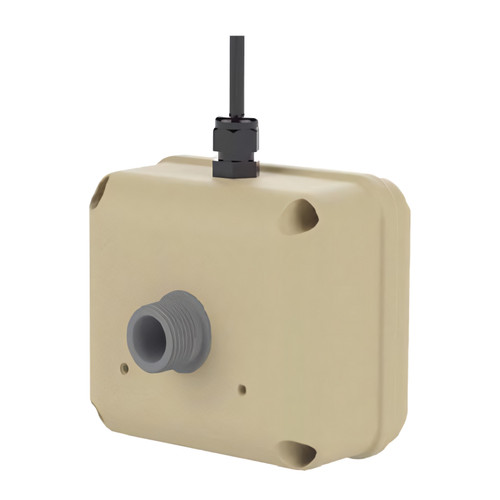

Seametrics PE202 Low Flow Magmeter Seametrics PE202 Low Flow Magmeter

Seametrics PE202 Low Flow Magmeter

Part:
PE202-038

The PE202 magmeter is designed for low-flow chemical injection or difficult-to-meter applications with pulsating metering pumps in 3/4 to 1/4 inch pipe/tube. The housing is made of sturdy splashproof HDPE plastic.

  • No Moving Parts
  • Requires no straight pipe
  • Pulse and/or 4-20 mA output
  • Chemical and corrosion resistant
  • Insensitive to fluid density and fluid viscosity changes
Configured Part:
Select options
Availability:
Usually ships in 9-12 days

Price:

$1,375.00
Adding to cart… The item has been added
Request a Quote

Need Help? Ask an Expert!

888-722-5543 Chat with Us

Product Details

Seametrics PE202 Inline Low-Flow Magmeter

With no moving parts, the PE202 can handle fluids containing particulate matter without clogging or jamming, keeping maintenance at a minimum. With no metallic parts (100% PVDF body and PVDF carbon fiber-filled electrodes), the meter is corrosion-resistant and compatible with a wide range of chemicals.

The PE meter is compact enough to fit most pump/injection systems. With zero straight pipe required after an elbow, it can be easily mounted in tight spaces. The mounting bracket adds stability.

Applications

  • Chemical injection
  • Corrosive materials
  • Low flow applications
  • Pulsating flows (e.g., metering pump)
